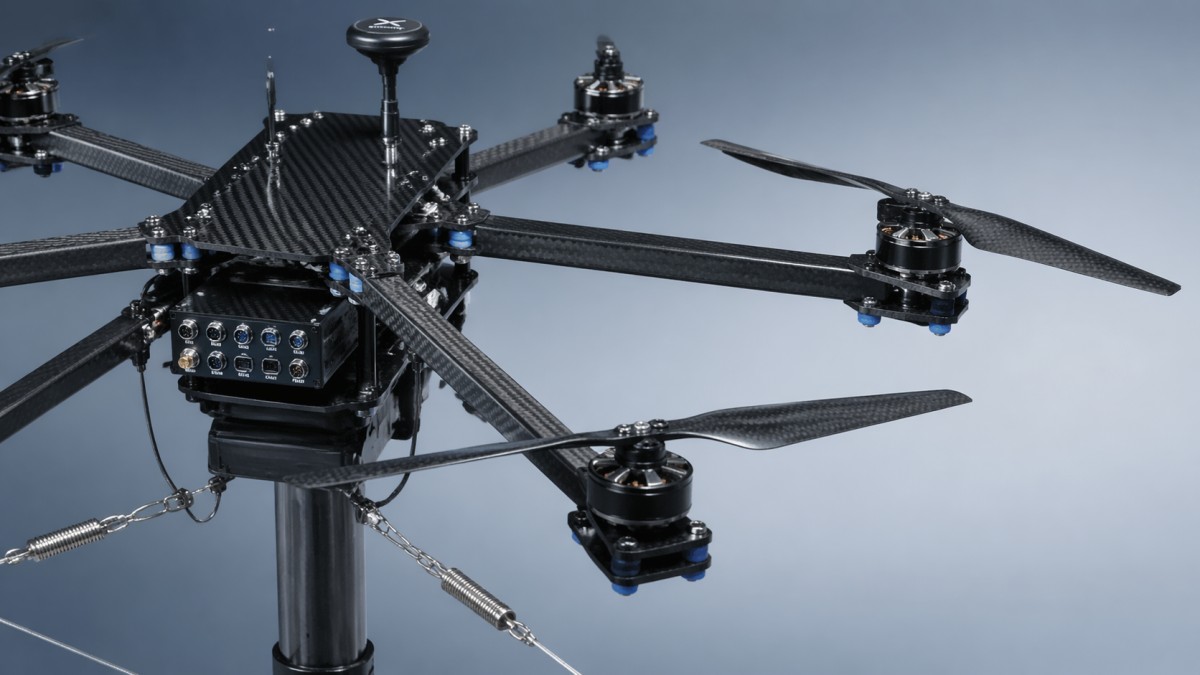

Carbon Fiber Frame Vibration Dampening and the Hidden Tuning Cost

Carbon fiber frame vibration dampening is often marketed as a built-in advantage, but in real UAV systems the outcome is rarely that simple. A carbon fiber frame can reduce, shift, or transmit vibration depending on layup direction, joint design, motor-prop balance, mounting stiffness, flight controller filtering, and payload placement. That is why the real question for engineers, operators, procurement teams, and decision-makers is not whether carbon fiber damps vibration, but how much tuning effort, performance tradeoff, and lifecycle cost is required to make that benefit usable in the field.

In practice, the hidden tuning cost appears when teams discover that a lighter and stiffer frame changes resonance behavior, affects drone propeller thrust efficiency, complicates UAV center of gravity calculation, and forces additional work in filter tuning, payload isolation, and flight controller latency benchmark validation. For buyers and technical managers, this means material selection should be evaluated as a system-level decision rather than a line-item upgrade. For operators, it means stability and image quality depend as much on integration discipline as on frame material.

What users are really trying to understand when they search carbon fiber frame vibration dampening

The core search intent behind this topic is practical evaluation, not basic definition. Most readers are trying to answer one of four questions:

• Does a carbon fiber frame actually reduce vibration in real flight conditions?
• Why do some carbon fiber UAVs still show oscillation, noisy IMU data, blurred imagery, or unstable control response?
• What tuning work is required after switching to a carbon fiber frame?
• Is the higher upfront cost justified once integration, maintenance, and testing are included?

That search intent matters because vibration performance is never determined by material alone. Carbon fiber can improve stiffness-to-weight ratio and help push structural modes away from some operating frequencies, but it can also make resonant peaks sharper and more sensitive to assembly quality. In other words, carbon fiber does not eliminate vibration problems; it changes where they show up and how much engineering discipline is needed to manage them.

For technical teams, the useful answer is a decision framework: identify the vibration source, map the transfer path, verify the control loop response, and then estimate the tuning burden before claiming a structural advantage.

Why carbon fiber does not automatically mean better vibration dampening

Carbon fiber is valuable because it offers high stiffness at low mass, which is extremely attractive in UAV and aerospace applications. But high stiffness is not the same as high damping. In many structural systems, carbon fiber can be excellent at resisting deformation while still transmitting certain vibration frequencies efficiently.

This is where marketing language often creates confusion. A frame described as “rigid and stable” may indeed hold geometry better under load, but the same rigidity can move vibration energy into sensors, gimbals, avionics mounts, or payload interfaces if the rest of the system is not tuned around it.

Three engineering realities explain the mismatch between expectation and field performance:

1. Material behavior depends on layup and geometry. Fiber orientation, resin system, tube diameter, wall thickness, and laminate schedule all affect how the frame responds to excitation.
2. Joints often dominate actual vibration transfer. Arm clamps, motor mounts, fasteners, adhesive interfaces, and landing gear connections can create local stiffness discontinuities that matter more than the base material.
3. The excitation source remains upstream. If motors, propellers, bearings, or ESC timing are poorly matched, a premium frame will not solve the root cause.

So the correct view is this: carbon fiber frame vibration dampening is a system outcome produced by structural design, manufacturing consistency, propulsion balance, control filtering, and payload mounting strategy.

The hidden tuning cost: where teams actually spend time and money

The hidden tuning cost is the extra engineering and operational effort required to turn a theoretically superior carbon fiber structure into a reliably stable aircraft. This cost is rarely visible in vendor brochures, but it appears quickly during prototype validation and fleet deployment.

Common cost centers include:

• Propeller and motor balancing to reduce high-frequency excitation before it reaches the frame
• Flight controller filter tuning to prevent sensor noise from corrupting attitude estimation
• PID and control-loop retuning after frame stiffness changes alter the dynamic response
• Payload isolation design for cameras, LiDAR, radar, or inspection sensors sensitive to micro-vibration
• Center of gravity correction when lighter structural members shift mass distribution
• Assembly quality control to maintain torque consistency and avoid joint-induced resonance
• Validation testing across payload states, RPM bands, wind conditions, and mission profiles

For R&D teams, this means a carbon fiber airframe may reduce structural weight while increasing commissioning hours. For procurement personnel, it means the lowest quoted frame price may not correspond to the lowest deployed system cost. For executives, it means ROI should be based on total integration effort, mission reliability, and maintenance burden, not only on material prestige.

How vibration links to drone propeller thrust efficiency

One of the most overlooked points is the relationship between vibration and drone propeller thrust efficiency. Excess vibration is not just a comfort or image-quality problem. It is often a sign that energy is being wasted in unwanted mechanical motion instead of useful aerodynamic work.

When propellers are imbalanced, when blades operate near structural resonance, or when the frame couples strongly with motor excitation frequencies, several penalties can appear:

• Lower effective thrust per watt
• Increased current draw
• Faster fatigue accumulation in fasteners and mounts
• Higher sensor noise and degraded control stability
• Reduced endurance under payload

A carbon fiber frame can improve efficiency indirectly by maintaining geometry and reducing parasitic flex under load. But if the resulting structure is not matched to the propulsion system, the benefit can be offset by resonance peaks that force conservative filtering or lower controller aggressiveness.

This is why engineering teams should evaluate the frame and propulsion package together. A useful benchmark is not simply static thrust, but stable thrust across the real operating RPM band with acceptable vibration amplitude, control margin, and thermal behavior.

Why flight controller latency benchmark matters more than many buyers expect

Many readers focus on frame mechanics and overlook the control stack. Yet vibration problems become operationally critical when they interact with estimator quality and controller latency. If a frame transmits significant high-frequency content into the IMU, the flight controller must filter that noise before making attitude corrections. Every filtering and estimation step has a cost.

That cost may include:

• Higher signal processing burden
• Additional filter delay
• Reduced responsiveness in aggressive maneuvers
• Increased risk of control instability when tuning is pushed too far

This is where a flight controller latency benchmark becomes essential. Teams should not only ask whether the aircraft “flies fine.” They should quantify how quickly and cleanly the system responds once vibration filtering is active. Two aircraft may use similar carbon fiber frames, yet the one requiring heavier filtering may deliver worse disturbance rejection and payload stability in real missions.

For procurement and enterprise decision-making, this matters because apparent frame quality can hide downstream costs in controller setup, validation time, and pilot confidence. If a platform needs excessive software compensation to tolerate structural vibration, its field robustness may be weaker than a slightly heavier but better-balanced design.

UAV center of gravity calculation: the structural choice that changes everything downstream

Another hidden consequence of carbon fiber frame selection is its effect on UAV center of gravity calculation. Lighter arms, plates, or booms can shift the relative influence of batteries, payloads, gimbals, and sensor pods. That changes more than balance. It changes control authority, vibration transfer paths, and mount loading.

In practical terms, a center of gravity shift can:

• Increase correction effort on specific axes
• Change motor loading symmetry
• Amplify vibration at payload mounting points
• Reduce flight efficiency under off-center payload configurations
• Complicate repeatability across different mission kits

This is especially important in commercial mapping, industrial inspection, and multi-sensor UAV configurations where payload swaps are frequent. A carbon fiber frame may create more useful weight headroom, but that advantage disappears if the aircraft requires repeated balance adjustments or if a payload sits near a resonance-sensitive location.

For this reason, center of gravity should be verified as part of structural evaluation, not after procurement. A frame that performs well with a bare airframe may behave very differently once batteries, antennas, dampers, and mission sensors are installed.

What engineers and operators should test before claiming vibration performance

To move from assumptions to evidence, teams need a practical validation method. The goal is to determine whether carbon fiber frame vibration dampening is delivering measurable mission value or simply shifting the tuning burden elsewhere.

A useful test workflow includes:

1. Measure baseline vibration spectra at the motor mount, center plate, IMU zone, and payload interface.
2. Track frequency peaks across throttle bands to identify resonance regions rather than relying on a single hover condition.
3. Compare balanced versus unbalanced propulsion sets to separate source vibration from structural transfer effects.
4. Log flight controller response and filter settings so structural claims can be linked to control performance.
5. Validate with representative payloads because empty-frame behavior often misleads.
6. Monitor endurance and thermal trends to capture efficiency penalties tied to vibration.
7. Repeat after maintenance cycles to determine whether the tuning window is stable over time.

Operators should also watch for field symptoms that indicate hidden vibration cost even when no formal lab data is available: recurring re-tuning after part replacement, inconsistent loiter stability, image blur at specific RPM bands, unexplained fastener loosening, or sensor calibration drift after transport.

How buyers and decision-makers should evaluate supplier claims

For buyers and enterprise decision-makers, the most important step is to stop treating carbon fiber as a shorthand for premium stability. The real procurement question is whether the supplier can provide engineering evidence that the frame performs well within a complete UAV architecture.

Useful supplier questions include:

• What vibration data is available at motor, IMU, and payload locations?
• Under what payload and propeller conditions was the data collected?
• What frame layup, wall thickness, and joint design are used?
• How sensitive is the platform to propeller replacement, field maintenance, and assembly torque variation?
• What control filter settings are required to pass stability tests?
• Has the design been validated for endurance, fatigue, and payload-specific oscillation behavior?
• What is the expected tuning effort when payload configurations change?

The strongest suppliers are not the ones making the loudest claims about vibration dampening. They are the ones that can show repeatable data, explain test conditions, define tolerance ranges, and identify the operating envelope where the platform remains stable without excessive tuning overhead.

When carbon fiber is worth it—and when it may not be

Carbon fiber is often worth the investment when the mission demands strict weight control, high payload fraction, long endurance, or structural stiffness under aerodynamic and maneuver loads. It is particularly compelling in high-performance UAV, aerospace-adjacent, and precision sensing applications where every gram and every geometric deflection matter.

However, it may be a poor fit when:

• The propulsion system is low-quality or inconsistently balanced
• The integration team lacks vibration analysis and tuning capability
• Payloads are swapped frequently without revalidation
• The application prioritizes rugged field service over peak mass efficiency
• The supplier cannot document resonance behavior and lifecycle stability

In these cases, a well-designed alternative structure with lower tuning sensitivity may produce better real-world uptime and lower total ownership cost.

Final assessment: evaluate carbon fiber as a data problem, not a branding signal

The most important conclusion is straightforward: carbon fiber frame vibration dampening is real only when verified at the system level. The hidden tuning cost comes from the fact that carbon fiber changes structural dynamics, but does not remove the need for careful balancing, flight controller latency benchmark review, payload isolation, and UAV center of gravity calculation. In some platforms, it unlocks meaningful gains in efficiency, stability, and payload quality. In others, it simply shifts complexity into commissioning and maintenance.

For engineers, the right approach is to test transfer paths, resonance bands, and controller behavior with measured data. For operators, the right question is whether the platform stays stable across actual mission conditions without constant retuning. For procurement teams and decision-makers, the right metric is total deployed performance per engineering hour and per lifecycle dollar—not the prestige of the material alone.

When evaluated honestly, carbon fiber is neither magic nor hype. It is a high-performance structural option whose value depends on whether the entire UAV system is tuned to use it well.
