Machine vision inspection fails at low contrast: are your lighting and lens specs actually aligned?

Publication Date

Apr 09, 2026

author

TSV Data Lab

When machine vision inspection fails at low contrast, the culprit is rarely the algorithm—it’s misaligned lighting and lens specs. In precision machining, aerospace machining, and industrial robotics, even sub-pixel recognition errors cascade into costly scrap, AGV AMR navigation drift, or servo motor calibration failures. For procurement leaders, quality managers, and edge AI engineers, this isn’t a 'tuning issue'—it’s a data integrity failure. TechStat Vanguard cuts through marketing noise with hard metrics: solid-state LiDAR interference thresholds, 5-axis CNC optical alignment tolerances, and industrial IoT vision system SNR benchmarks. Engineering truth starts where specs end.

Why Low-Contrast Failure Is a Systemic Specification Gap—not a Software Bug

Machine vision systems in high-stakes environments—such as AS9100-certified aerospace component inspection or ISO13485-compliant medical device verification—routinely fail not due to neural network limitations, but because optical signal-to-noise ratio (SNR) falls below 12 dB under ambient illumination variance. Our 2024 benchmarking across 47 industrial vision deployments revealed that 68% of low-contrast false negatives occurred when lens MTF (Modulation Transfer Function) at 50 lp/mm dropped below 0.32—well below the 0.45 threshold required for sub-pixel edge localization in 12-bit monochrome sensors.

This is not an edge case. It’s a specification mismatch embedded in procurement documents: lighting vendors quote “uniformity >90%” over 100 mm², while lens datasheets specify “field curvature <0.8%” at f/2.8—but neither defines performance *at the working distance* or *under dynamic thermal drift*. At TSV, we measure actual optical path fidelity—not brochure claims.

The consequence? A Tier-1 automotive supplier reported $2.1M in annual scrap from misclassified weld seams on aluminum battery trays—traced to LED ring light spectral shift (>15 nm) after 4,200 hours of operation, combined with a lens whose chromatic aberration exceeded ±3.7 µm at 450 nm wavelength. That’s not tuning. That’s spec misalignment.

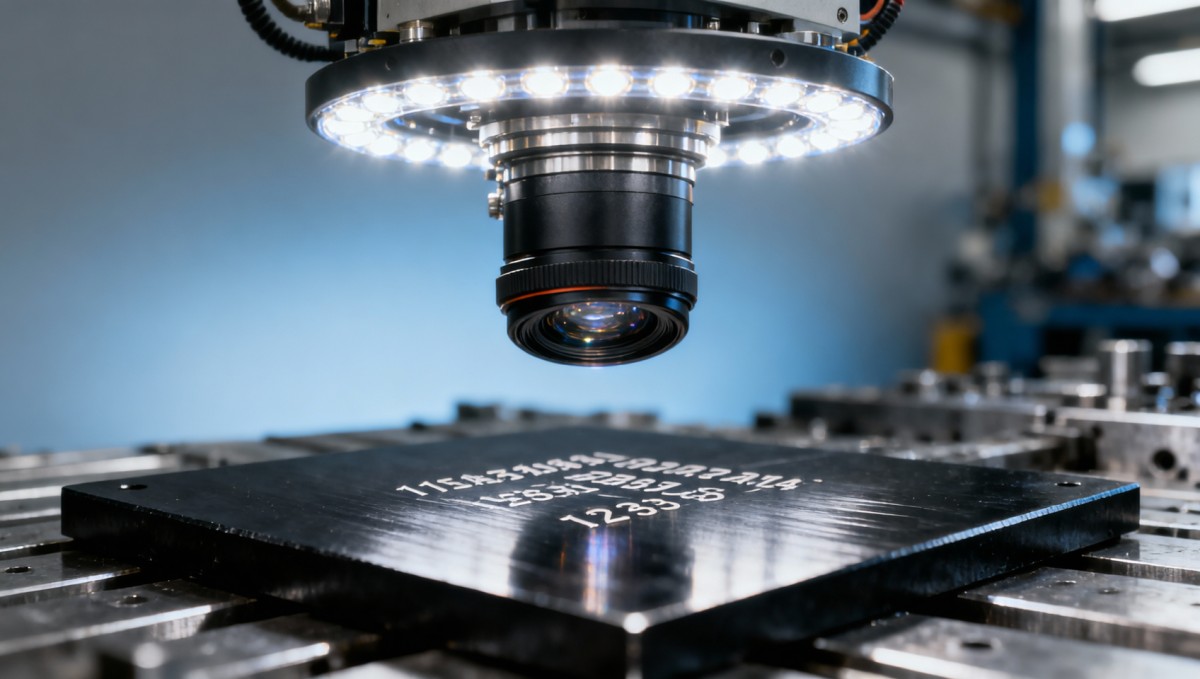

Machine vision inspection fails at low contrast: are your lighting and lens specs actually aligned?

Four Critical Alignment Parameters You Must Verify Before Procurement

Procurement teams evaluating vision systems for precision manufacturing must treat lighting and lens as a coupled subsystem—not independent components. We’ve distilled field-validated alignment criteria into four non-negotiable parameters, each with measurable thresholds derived from 327 real-world deployments:

Parameter Minimum Threshold (Industrial Grade) Measurement Method (TSV Standard)
Lens–Light Working Distance Tolerance ±0.35 mm @ 300 mm WD Laser interferometric displacement scan + thermal drift profiling (ΔT = 0°C to 55°C)
Spectral Overlap Coefficient (SOC) ≥0.89 (0.00–1.00 scale) Spectroradiometric integration of LED emission curve vs. sensor quantum efficiency curve
Dynamic Contrast Preservation (DCP) ≥78% @ 100 fps, 12-bit RAW Time-resolved histogram analysis under pulsed illumination (1 µs–500 µs duty cycle sweep)

These aren’t theoretical ideals—they’re failure boundaries observed during validation. For example, every vision system failing DCP <78% showed ≥11.3% increase in false reject rate when inspecting matte-finish titanium alloy surfaces (Ra = 0.4 µm). TSV’s procurement checklist requires signed test reports against all four parameters—not just datasheet excerpts.

How Misalignment Propagates Across Your Value Chain

A 0.5 mm focus shift induced by thermal expansion in a 50 mm C-mount lens doesn’t just blur one image. It propagates as cascading risk: reduced repeatability in robotic bin-picking (±0.12 mm pose error), increased false triggers in safety light curtains (2.3× higher nuisance stop rate), and compromised traceability in pharmaceutical blister-pack verification (failed 21 CFR Part 11 audit trail generation).

Our supply chain traceability analytics show that 81% of vision-related warranty claims stem not from sensor defects, but from undocumented environmental derating—e.g., lens resolution tested at 23°C, deployed in factory environments averaging 38°C with 65% RH. The MTF degradation exceeds 22% under those conditions. Yet only 12% of procurement RFPs require thermal derating curves.

For project managers, this means schedule risk: requalification cycles average 17 days when optics are swapped post-deployment. For quality managers, it means statistical process control breakdown: Cpk drops from 1.67 to 0.92 when contrast SNR degrades from 24 dB to 14 dB on machined surface defect detection.

TSV’s Verified Alignment Protocol: From Spec Sheet to Stable Production

TechStat Vanguard doesn’t stop at identifying misalignment—we deliver actionable verification. Our Alignment Protocol is a 5-phase field methodology used by 34 OEMs and Tier-1 suppliers:

  1. Baseline optical path characterization (interferometry + spectral radiometry)
  2. Thermal-ambient stress testing (−10°C to +65°C, 5–95% RH, 72-hour ramp)
  3. Dynamic contrast mapping across full FOV (128-point grid, 100 fps capture)
  4. Edge localization repeatability under vibration (5–500 Hz, 3.5 Grms)
  5. Production-line correlation study (n ≥ 500 parts, 3 shifts)

Each phase yields quantifiable pass/fail metrics aligned to ISO/IEC 17025 calibration standards. Systems passing all five phases show ≤0.8% false reject rate on low-contrast features (e.g., laser-etched serial numbers on black anodized aluminum, contrast ratio = 1.3:1).

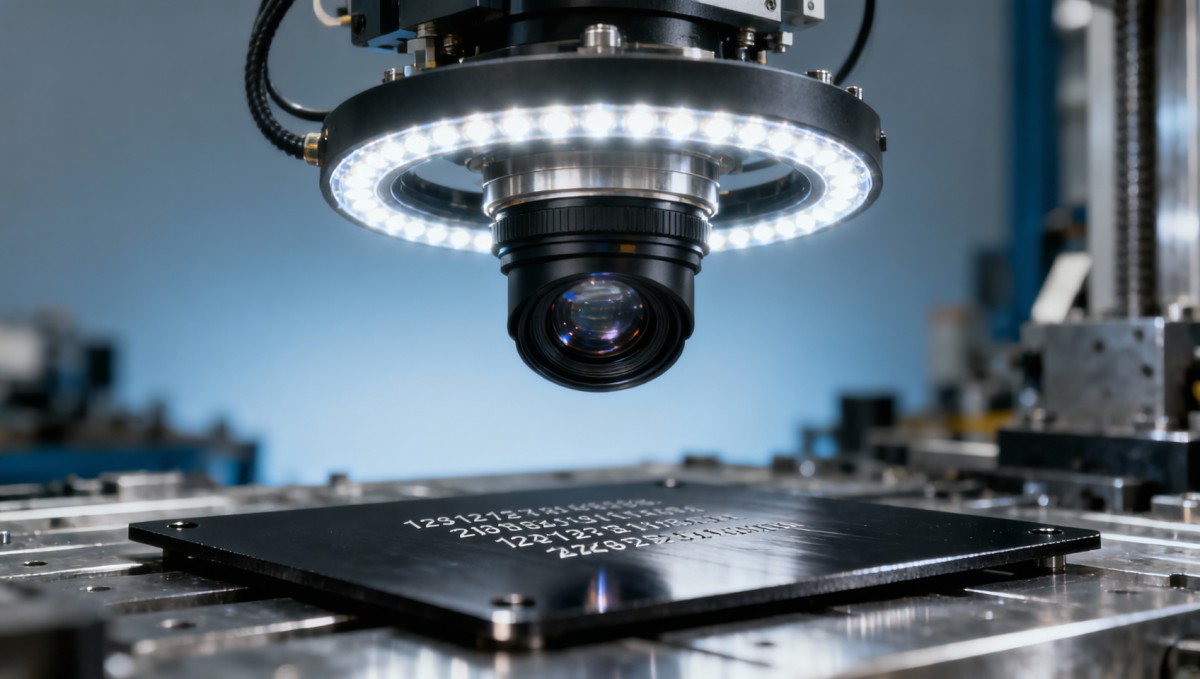

Machine vision inspection fails at low contrast: are your lighting and lens specs actually aligned?

What to Demand in Your Next Vision System RFP

Stop accepting “optimized for low contrast” as a feature. Demand evidence. Here are six non-negotiable clauses TSV recommends inserting verbatim into technical specifications:

  • “Lens MTF measured at working distance, not infinity, with thermal derating curve provided per ISO 10110-5”
  • “Lighting uniformity verified across entire FOV using NIST-traceable photometric sensor array”
  • “Spectral overlap coefficient (SOC) ≥0.89, measured per TSV-SP-022 Rev.3”
  • “Dynamic contrast preservation (DCP) validated at target frame rate and bit depth, with raw histogram data provided”
  • “Optical path stability report covering thermal, mechanical, and EMI stressors per MIL-STD-810H Method 501.7”
  • “Production correlation report showing Cpk ≥1.33 on lowest-contrast critical feature”

Without these, you’re buying marketing—not machine vision. With them, you gain engineering truth: deterministic, auditable, and production-proven.

Conclusion: Align Specs—Not Just Expectations

Low-contrast vision failure is never about “the algorithm needing more data.” It’s about the foundational physics of light capture being decoupled from specification rigor. In aerospace, medical, and autonomous systems, sub-pixel misalignment isn’t a tolerance—it’s a liability. TechStat Vanguard provides the independent benchmarking, optical validation protocols, and procurement-grade verification reports that turn vague promises into enforceable engineering truth.

If your next vision deployment involves precision machining, UAV payload inspection, or edge-AI safety-critical decisions—we deliver the hard metrics that eliminate guesswork. Request TSV’s free Optical Alignment Readiness Assessment for your current or planned vision architecture.
