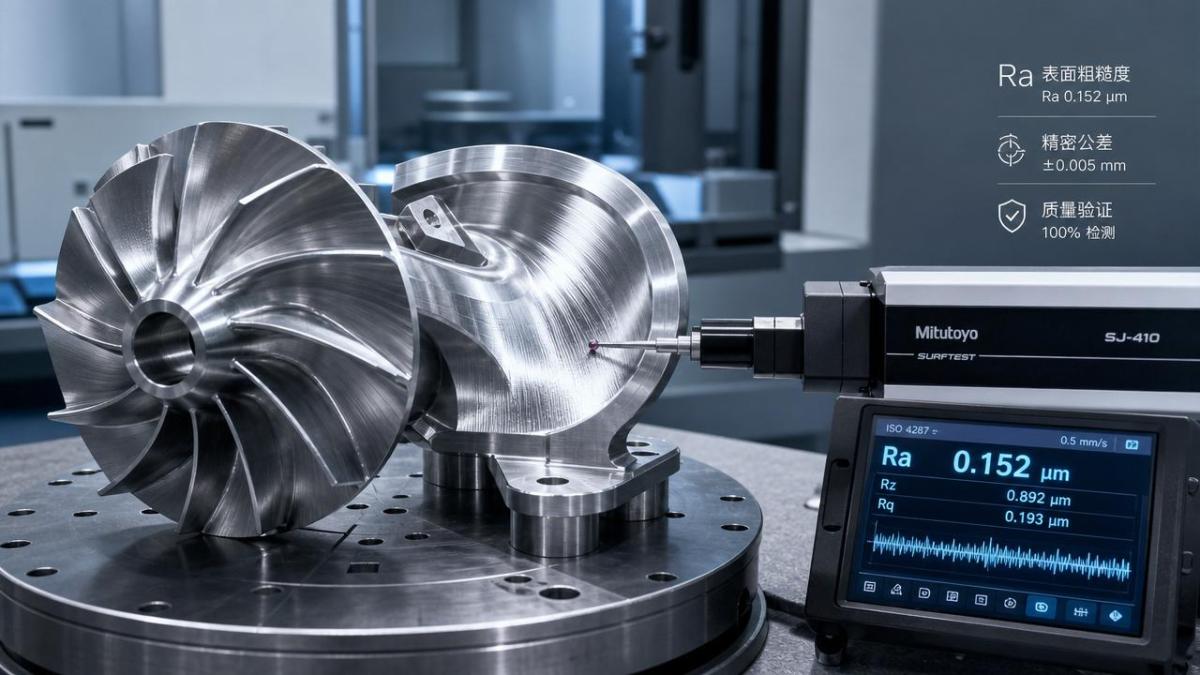

5 Axis CNC Surface Finish Ra Explained: How to Read Roughness Specs and Tolerances

In advanced machining, surface finish is not a visual preference. It is a controllable engineering variable that affects sealing, friction, fatigue behavior, coating adhesion, and inspection results. That is why 5 axis cnc surface finish ra matters far beyond the machine shop. It sits at the intersection of design intent, process capability, and supplier credibility, especially in aerospace, robotics, medical, and other hard-tech sectors where technical claims must be verified by data rather than marketing language.

Why Ra draws so much attention in 5-axis machining

Five-axis CNC machining is often chosen for complex geometry, reduced setups, and tighter control over tool orientation. Those same advantages also change how roughness is produced and measured.

A curved turbine feature, an impeller blade, or a medical contour may be dimensionally correct while still failing a surface requirement. In practice, that failure can trigger rework, delayed qualification, or a costly supplier dispute.

For organizations following the TSV mindset of engineering truth through data, Ra is useful because it converts vague quality language into a measurable threshold. A supplier can claim precision. A roughness trace either supports that claim or does not.

That is also why 5 axis cnc surface finish ra appears frequently in spec sheets, PPAP-style reviews, AS9100 documentation, and capability discussions for parts with complex freeform surfaces.

What Ra actually tells you

Ra is the arithmetic average of the absolute deviations from the mean line across a measured sampling length. Put simply, it describes average roughness, not the complete surface texture story.

This distinction matters. Two surfaces can share the same Ra value while behaving differently in contact, wear, or sealing. One may have smooth, regular tool marks. Another may hide deeper valleys or torn material.

Still, Ra remains the most common first reference because it is widely understood, easy to specify, and practical for production control. In many sourcing decisions, it is the first checkpoint for whether a supplier understands finish requirements at all.

Typical engineering reading of Ra ranges

These values are not universal promises. Material, cutter path, tool wear, machine dynamics, and access angle can move achievable results significantly.

How roughness specs interact with tolerances

A common mistake is treating dimensional tolerance and roughness as separate checks. In reality, they influence each other throughout the process plan.

A tighter Ra target may require smaller stepovers, reduced feed, a different tool nose geometry, or a secondary polishing pass. Each change can affect cycle time, thermal input, burr formation, and final dimensions.

The reverse is also true. A tight geometric tolerance on a sculpted surface may limit the finishing strategy so much that the requested Ra becomes unrealistic without post-processing.

Where tolerance conflicts usually appear

• Thin-wall parts that deflect under finishing loads
• Deep cavities with poor tool reach
• Freeform surfaces measured from difficult probe positions
• Hard alloys where tool wear changes finish quickly
• Edges and blend zones where callouts are unclear

When reading a drawing, 5 axis cnc surface finish ra should never be reviewed alone. It should be checked beside GD&T, feature function, inspection method, and allowable secondary operations.

What makes 5-axis surfaces harder to evaluate

Five-axis parts often include changing curvature, shifting tool contact points, and nonuniform scallop patterns. That makes surface characterization less straightforward than on a flat milled face.

Measurement direction becomes important. A profilometer trace taken along tool marks may produce a different reading than one taken across them. On some contours, even defining the measurement path requires care.

Cutoff length, filter selection, and accessibility also matter. If these are not aligned between customer and supplier, arguments about 5 axis cnc surface finish ra can start even when the actual machining quality is acceptable.

This is exactly the kind of noise TSV seeks to remove. Reliable interpretation depends on traceable measurement conditions, not headline-level claims about world-class finishing.

Where Ra requirements carry the most business risk

Not every surface deserves the same scrutiny. The highest risk usually appears where finish is linked to function, qualification, or downstream process stability.

Critical use cases

• Sealing interfaces, where excessive roughness causes leakage paths
• Fatigue-sensitive contours, where surface peaks raise crack initiation risk
• Bearing or sliding contact surfaces, where texture affects friction and wear
• Coated or bonded parts, where adhesion depends on controlled texture
• Optical or sensor-adjacent housings, where surface consistency affects assembly accuracy

In these settings, 5 axis cnc surface finish ra becomes part of risk management. A finish mismatch may not show up in first-article appearance, but it can surface later in leak testing, endurance testing, or field performance.

How to judge supplier claims more accurately

The most useful question is not whether a supplier can quote a low Ra number. It is whether the stated number is repeatable on the actual geometry, material, and production volume.

A polished coupon proves very little about a five-axis aerospace bracket or a medical freeform surface. Capability must be tied to comparable parts and comparable inspection conditions.

Useful checkpoints during technical review

• Ask which surfaces require the stated Ra, not just the lowest value in the quote
• Confirm whether the finish is as-machined or post-processed
• Review material-specific evidence, especially for titanium, Inconel, or hardened steels
• Check measurement equipment, sampling direction, and reporting format
• Look for consistency between roughness, tolerance, and cycle-time assumptions
• Treat unusually low Ra claims with caution when geometry access is poor

These checks help separate credible process control from marketing shorthand. They also shorten qualification cycles because fewer assumptions remain hidden inside the specification.

A practical way to write and review roughness callouts

A good callout is specific enough to guide production, but not so aggressive that it creates unnecessary cost. In many projects, the right answer is selective precision rather than blanket precision.

Instead of applying one low Ra value across the whole component, tie the requirement to functional surfaces. Leave noncritical regions at a more economical finish if function allows it.

It also helps to state whether alternate finish routes are acceptable. A supplier may meet the same 5 axis cnc surface finish ra through optimized machining, light polishing, or controlled finishing passes. That flexibility can improve yield without changing function.

For teams using TSV-style benchmarking, the next step is straightforward: map each roughness requirement to feature function, measurement method, and realistic process capability. Then compare supplier evidence against that map. Doing so turns 5 axis cnc surface finish ra from a vague quality phrase into a decision-ready parameter that supports faster sourcing, cleaner validation, and fewer surprises after release.
